PCB Fabrication

PCB Milling

Printed circuit board milling (also: isolation milling) is the process of removing areas of copper from a sheet of printed circuit board material to recreate the pads, signal traces and structures according to patterns from a digital circuit board plan known as a layout file. Similar to the more common and well-known chemical PCB etch process, the PCB milling process is subtractive: the material is removed to create the electrical isolation and ground planes required.


However, unlike the chemical etch process, PCB milling is typically a non-chemical process and as such it can be completed in a typical office or lab environment without exposure to hazardous chemicals.

Drills & Throughplating

                 Advantages

PCB milling has advantages for both prototyping and some special PCB designs. Probably the biggest benefit is that one doesn't have to use chemicals to produce PCBs.


When creating a prototype, outsourcing a board takes time. The alternative is to make a PCB in-house. Using the wet process, in-house production presents problems with chemicals and disposing thereof. High-resolution boards using the wet process are hard to achieve and still, when done, one has to drill and eventually cut out the PCB from the base material.

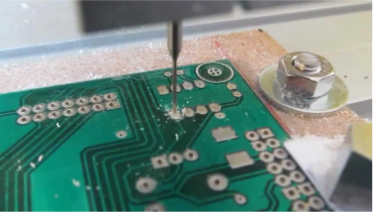

PCB Fabrication

CNC Machine Prototyping

CNC machine prototyping can provide a fast-turnaround board production process without the need for wet processing. If a CNC machine is already used for drilling, this single machine could carry out both parts of the process, drilling, and milling. A CNC machine is used to process drilling, milling, and cutting.


Many boards that are simple for milling would be very difficult to process by wet etching and manual drilling afterward in a laboratory environment without using top of the line systems that usually cost multiple times more than CNC milling machines.


In mass production, milling is unlikely to replace etching although the use of CNC is already standard practice for drilling the boards.
