PCBs, integral to umpteen electronic devices, comprise various components, which together form a printed circuit assembly. These components include an insulating material, a substrate, copper foil layers, a panel or board, connection pads, wires, and more. A printed circuit board assembly actually is an assembling process in itself, which includes combining the wired circuit on the board with the concerned electronic device. There are certain ways in which an assembly is mounted. Some of them include surface mounting, plated through-hole, and electromechanical.

CONTACT US
PCB Fabrication

PCB Assembly Capability

Our state-of-the-art assembly equipment enables us to meet all your PCBA needs under one roof in an inexpensive way, our Printed Circuits Boards Assembly Capability includes but is not limited to what is listed below, as we are updating our equipment constantly to keep us on the cutting edge. If your PCB Assembly demands are beyond these capabilities, please contact us and we will respond if we can do it or not within 24 hours.

Testing Procedures

Various testing method will be applied to the assembled boards before the final shipment:

Visual inspection: general quality check.

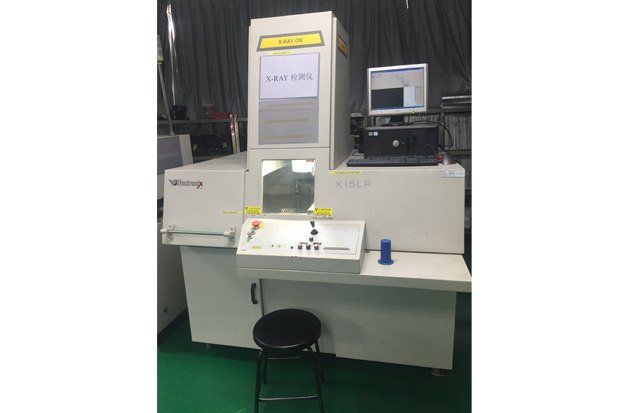

X-ray Inspection: checks for BGAs, QFN and bare circuit boards.

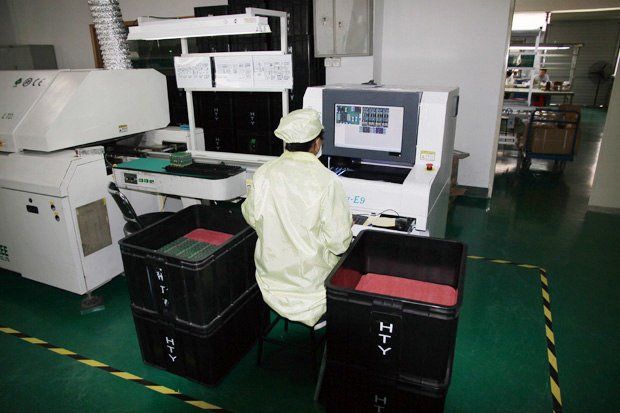

AOI Testing: checks for solder paste, 0201 components, missing components and polarity.

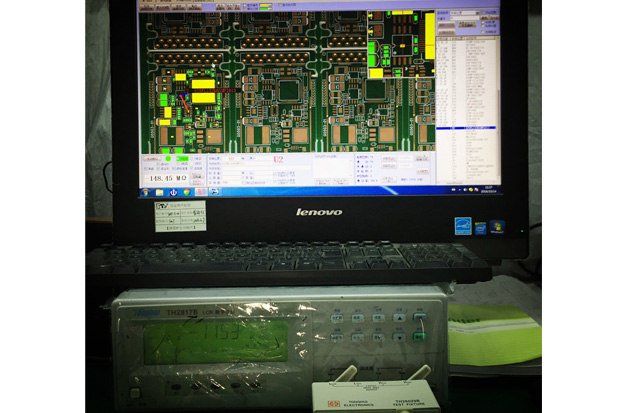

ICT (In-Circuit Test)

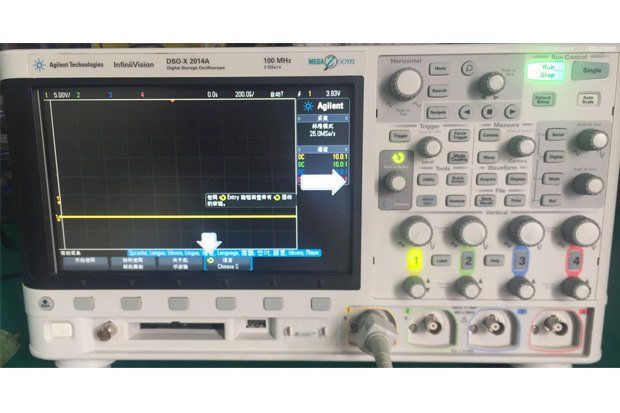

Functional test (Following your test procedures).

ISO Certification

AlteraFlex's production facilities are ISO9001 certified to ensure we go beyond your expectations.

ISO9001 certified

IPC610－D Test specification

Pass rate ≥99.5%

Quality complaint rate ≤ 0.1%

Our list of printed circuit board assembly capabilities allows our PCB customers to have the convenience of a “One Stop Solution” for their manufacturing and assembly needs.

Item # Item Name PCBA Capability
1 Lead Time Our assembly time ranges from 24 Hours to a few weeks. Please choose appropriate time option to fit your schedule and budget Due to the complexity of how to determine the turn time of PCBA services, our policy is that turn-time begins immediately after all the parts are ready and all the PCB files (Gerber files/other PCB files, etc.,) Centroid (Pick & Place PNP file, or XY Data or files in other formats), BOM, and all other necessary data or documents/images/photos are complete for our assembly work.
2 Parts Source Consigned/ kitted We prefer you supply all the parts for the PCBA services. In this case, please send us all the components with BOM file and detailed packing list indicating item number, customer or manufacturer’s part number and quantity in kit
2 b. Parts Source Consigned/ kitted With our wide and powerful network of parts sourcing, we offer Turn-key PCBA service. We do not mark up on the parts cost. Considering the big price gap between different suppliers, we only source from reliable suppliers who may have no price advantages. We will always ask for your approval before making any decisions.
2 c. Parts SourcePartial Turn-key/ Combo This is our regular practice which you offer the main devices and components, while we source the rest for you. Just like the Turn-key service, we will ask for your approval on every details of the parts concerning price, quality and availability.
3 Assembly Options We offer Surface Mount (SMT), Thru-Hole (THT) and hybrid of both. We also offer single or double-sided placement.
4 Types of Solder We offer both leaded and lead-free (RoHS Compliant) assembly services for our customers. Please choose one to best fit your PCB and the parts on the PCB.
5 Stencils We use laser cut stainless steel stencils to ensure high reliability for fine pitch and BGA components. Nano coating is available upon request.
6 Minimum Order Our minimum is as low as 5 pieces. We do not want you to pay for what you do not need indeed to save you money.
7 Component Size > Passive Component: we can accept components as small as 01005, 0201,0402. > BGA: We have the ability to handle BGA of 0.25mm pitch with X-ray testing. > Fine Pitch Parts: we can assemble 0.25mm fine pitch parts.
8 Component Package We accept parts in Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk.
9 Board Dimension > Min Board Size: 50mm x 100mm (Boards smaller than this size need to be panelized) > Max Board Size: 250mm x 500mm
10 Board Shape We can assemble boards in Rectangular, Circular and any Odd Shapes. (For shapes other than rectangle, you need to panelize the boards in an array, and add break-away rails at the two longer paralleled edges of the panelized boards to ensure that the boards can be assembled by the machine.)
11 Board Type Currently we handles Rigid boards mostly. As we have the ability to handle flex and rigid-flex boards, please contact service@pcbway.ru if your boards are of flex or rigid-flex.
12 Repair & Rework Repair and rework can be difficult, but we do. Our BGA reballing service with which we can safely remove the misplaced BGA, reball it and put it back on the PCB correctly. It is cost-effective.
